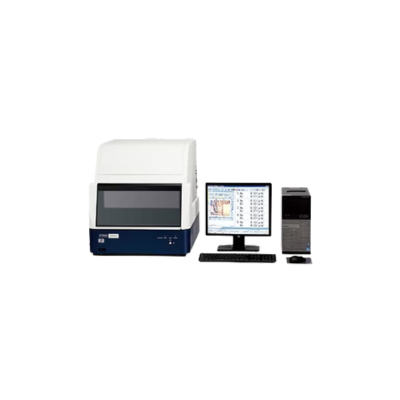

XRF Coating Thickness Gauge – FT110A

  • Easy operation
  • Precisely measures 50 nm Au coating thickness in 10 seconds
  • Measurement without the standard sample
  • Easy positioning using the Wide View System (option)

Description

The FT110A XRF Coating Thickness Gauge has a new autofocus function that automatically focuses on the sample to acquire an optical image within a few seconds. No manual adjustment is required, which results in higher throughput.
Key benefits
  • Easy operation
  • Precisely measures 50 nm Au coating thickness in 10 seconds
  • Measurement without the standard sample
  • Easy positioning using the Wide View System (option)

Specs & Applications
  • Elements: Atomic Number: 22 (Ti) to 83 (Bi)
  • X-ray Tube: Small Air-cooled X-ray tube
  • Voltage: 50kV
  • Current: 1mA
  • Detector: Proportional Counter
  • CollimatorRound 0.1mm, 0.2mm and two other types
  • Sample Observation: SSD camera (with dual camera wide view system)
  • Sample Image Focus: Laser Pointer with auto focus
  • Filters: Primary filter with automatic switching
