Description

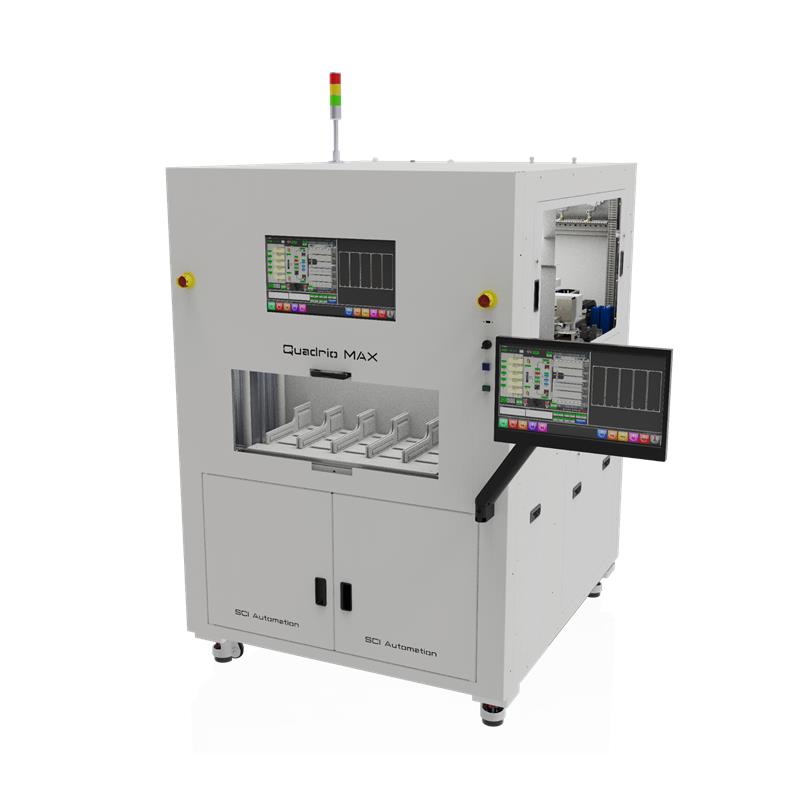

Quadrio MAX is a fully-automatic standalone plasma cleaning system designed to process lead frames in magazines. The origins of this systems date back in 2004 where the first versions of the old Quadrio systems where delivered to the market.
Since then, a lot of improvements have been done and additional automation to improve efficiency has been added. Quadrio MAX supports common protocols like SECS/GEM to ensure full lead frame traceability.
Quadrio MAX can process lead frames in magazines of different sizes and various materials. In Quadrio MAX, each lead frame is taken out of the magazine, plasma processed and put back in the same magazine. This guarantees the best results in terms of plasma cleaning and activation. Quadrio MAX can accomodate a maximum of 5 magazines that are processed concurrently.
The main applications of Quadrio MAX are:
- Plasma cleaning before wire-bonding
- Plasma cleaning before transfer molding
Quadrio MAX main advantage is its fully automated features that allow seamless change between different products as well as a high throughput.
Advanced traceability options are available on this system to easily integrate with a variety of Manufacturing Execution Systems (MES).
