Description

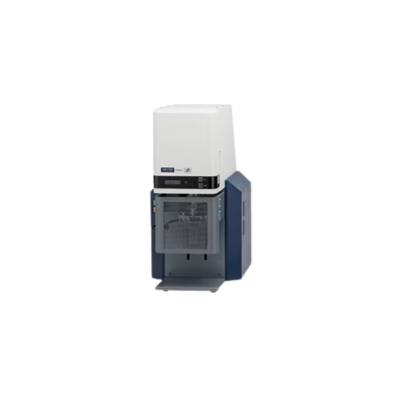

The Hitachi TMA7000 Series Thermomechanical Analyzer has doubled its sensitivity compared with our conventional model. It measures a wide range of samples, including thin film and small samples, as it uses the total expansion method and does not limit sample shapes. Changing the modes between push, penetration, and tension is done by simply replacing the probe. A wide range of options, such as an automatic cooling unit, ensures the ease of use and highly accurate measurement.
High Sensitivity
TMA7000 is equipped with newly developed “Z-stabilizer” signal optimization technology, which cuts noise levels to achieve highly sensitive measurements.
High-Temperature High-Humidity Measurements
Additional options allow measurement under high temperature and high humidity conditions. Furthermore, it is extensible to swelling and vacuum measurements.
The Eco-Friendly Cooling Unit
The eco-friendly cooling unit cuts liquefied nitrogen consumption by approximately 40% (compared to previous models). Electrical cooling units that do not use liquefied nitrogen can also be connected.
Effective Atmosphere Control
A mass flow meter can be incorporated into the gas control so the atmosphere can be efficiently controlled by not only the purge gas ON/OFF switch but also programmed flow rate control.
Improved Temperature Control Function
The new built-in temperature control function is designed to reduce the gap between the program temperature and the measurement sample temperature and improve temperature compliance.
| Model | TMA7100 | TMA7300 |
|---|---|---|
| Sample Cylinder | Quartz, metal | Alumina |
| Temperature Range | -170 to 600°C | Ambient to 1,500°C |
| TMA Measurement Range | ±5 mm | |
| TMA Sensitivity | 0.01 µm | |
| Load Range | ±5.8 N | |
| Scan Rate | 0.01 to 100°C/min | |
| Maximum Sample Size | Expansion; Φ10×L25 mm Tension; W1×T5×L25 mm | Expansion; Φ10×L25 mm |
| Sample Length Measurement | Automated Measurement | |
